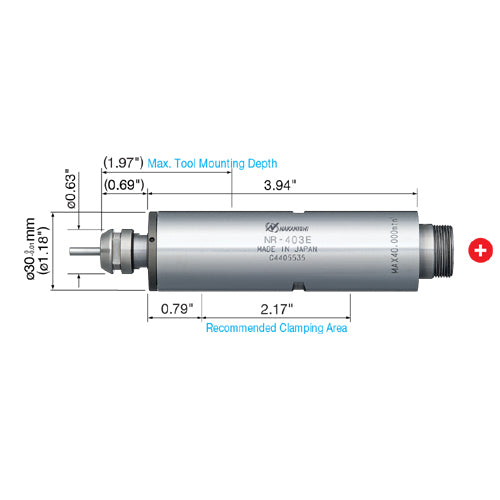

NSK Nakanishi NR-403E Spindle - 40,000rpm
NSK Nakanishi NR-403E Spindle - 40,000rpm
Availability:
In Stock
Product SKU:
NR-403E
Prop 65
Warning
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.
$1,183.00
The NSK Nakanishi NR-403E Spindle can be used for small-diameter milling, drilling, slitting, chamfering, grinding, etc. The external housing is made of stainless (SUS416). It is designed to withstand the pressure of machine attachment.
• Allowable Motor Speed: 40,000 rpm
• Spindle Accuracy: Within 1 µm
• Standard Size Collet Chuck (CHK-3.175): ø1/8"
• Weight: 15.52 oz.
• NSK Catalog Number: ASE1514 (Formerly NR-402E)
Included Equipment:
Collet Chuck ø1/8" (CHK-3.175)
• Chuck Nut (K-265): 1 pc.
• Wrench (12 x 14): 2 pcs., (22 x 27): 1 pc.
Optional Equipment:
• Collet Chuck (CHK-[][]): ø0.5 mm~ø6.0 mm in 0.1 mm increments and 2.35mm, ø1/8", ø1/4"
• Chuck Nut (K-265): For Collet Chuck (CHK)
• Metal Saw Arbor (KCH-03): For ø0.24" (I.D.) x ø1.18" (O.D.)
• Drill Chuck Arbor (DCH-J0K): For Jacob's Taper No. 0
• Grindstone Arbor (AGM-03): For grinding wheel with I.D. of ø5mm
• Grindstone Flange (EGF-19): ø19.05 (I.D.) x ø40 (O.D.) x 7 (W) mm
