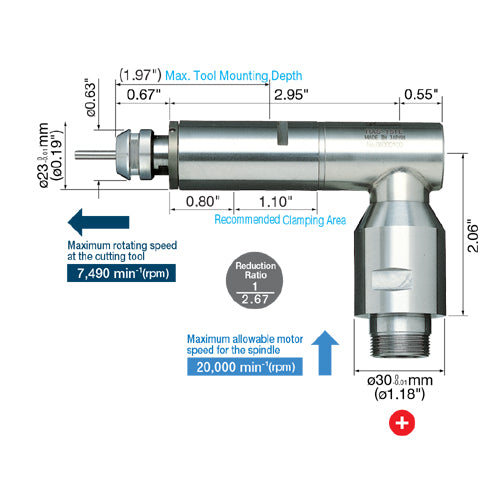

NSK Nakanishi RAS-151E Spindle - 90° Angle
• Maximum allowable motor speed for the spindle: 20,000 rpm
• Maximum rotating speed at the cutting tool: 7,490 rpm
• Spindle Accuracy: Within 2 μm
• Standard Size Collet Chuck (CHK-3.175): ø1/8"
• Weight: 11.46 oz.
• NSK Catalog Number: ASE1559 (formerly RAS-150E)
Standard Equipment:
• Collet Chuck ø1/8" (CHK-3.175) : 1 pc.
• Chuck Nut (K-265) : 1 pc.
• Wrench (12 x 14) : 2 pcs., (22 x 27) : 1 pc.
Optional Equipment:
• Collet Chuck (CHK-[][]): ø0.5 mm~ø6.0 mm in 0.1 mm increments and ø3/32",ø1/8", ø1/4"
• Chuck Nut (K-265): For Collet Chuck (CHK)
• Metal Saw Arbor (KCH-03): For ø0.24" (I.D.) x ø1.18" (O.D.)
• Drill Chuck Arbor (DCH-J0K): For Jacob's Taper No. 0
• Grindstone Arbor (AGM-03): For grinding wheel with I.D. of ø5 mm
NSK Nakanishi RAS-151E Spindle - 90° Angle
Availability:
In Stock
Product SKU:
RAS-151E
Prop 65
Warning
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.
$1,097.00
The NSK Nakanishi RAS-151E 90° Angle Spindle can use up to a ø1/4" (ø6.35 mm) collet chuck and is suitable for installation where space restrictions exist.
• Maximum allowable motor speed for the spindle: 20,000 rpm
• Maximum rotating speed at the cutting tool: 7,490 rpm
• Spindle Accuracy: Within 2 μm
• Standard Size Collet Chuck (CHK-3.175): ø1/8"
• Weight: 11.46 oz.
• NSK Catalog Number: ASE1559 (formerly RAS-150E)
Standard Equipment:
• Collet Chuck ø1/8" (CHK-3.175) : 1 pc.
• Chuck Nut (K-265) : 1 pc.
• Wrench (12 x 14) : 2 pcs., (22 x 27) : 1 pc.
Optional Equipment:
• Collet Chuck (CHK-[][]): ø0.5 mm~ø6.0 mm in 0.1 mm increments and ø3/32",ø1/8", ø1/4"
• Chuck Nut (K-265): For Collet Chuck (CHK)
• Metal Saw Arbor (KCH-03): For ø0.24" (I.D.) x ø1.18" (O.D.)
• Drill Chuck Arbor (DCH-J0K): For Jacob's Taper No. 0
• Grindstone Arbor (AGM-03): For grinding wheel with I.D. of ø5 mm
The NSK Nakanishi RAS-151E 90° Angle Spindle can use up to a ø1/4" (ø6.35 mm) collet chuck and is suitable for installation where space restrictions exist.
