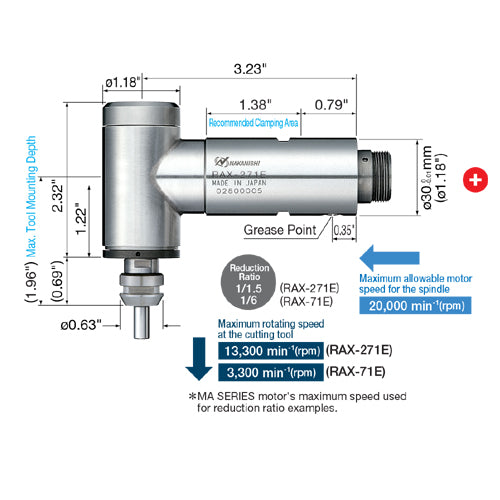

NSK Nakanishi RAX-271E Spindle - 90° Angle
NSK Nakanishi RAX-271E Spindle - 90° Angle
Availability:
In Stock
Product SKU:
RAX-271E
Prop 65
Warning
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.
$1,220.00
The NSK Nakanishi RAX-271E 90° Angle Spindle is assembled with high precision angular ball bearings 2 each on front and rear sides to obtain high accuracy and strong rigidity and is capable of using up to a ø1/4"(ø6.35 mm) collet chuck.
• Maximum allowable motor speed for the spindle: 30,000 rpm
• Maximum rotating speed at the cutting tool:
RAX-271E 20,000 rpm
RAX-71E 5,000 rpm
• Spindle Accuracy: Within 3 μm
• Standard Size Collet Chuck (CHK-3.175): ø1/8"
• Weight: 1 lb. 4.46 oz.
• NSK Catalog Number: ASE1579
• Maximum allowable motor speed for the spindle: 30,000 rpm
• Maximum rotating speed at the cutting tool:
RAX-271E
RAX-71E
• Spindle Accuracy: Within 3 μm
• Standard Size Collet Chuck (CHK-3.175): ø1/8"
• Weight: 1 lb. 4.46 oz.
• NSK Catalog Number: ASE1579
(formerly RAX-270E)
Standard Equipment:
• Chuck Nut (K-265) : 1 pc.
• Wrench (12 x 14) : 2 pcs., (22 x 27) : 1 pc.
Standard Equipment:
• Chuck Nut (K-265) : 1 pc.
• Wrench (12 x 14) : 2 pcs., (22 x 27) : 1 pc.
Additional collet purchase required
Optional Equipment:
• Collet Chuck (CHK-[][]): ø0.5 mm~ø6.0 mm in 0.1 mm increments and ø3/32",ø1/8", ø1/4"
• Chuck Nut (K-265): For Collet Chuck (CHK)
• Metal Saw Arbor (KCH-03): For ø0.24" (I.D.) x ø1.18" (O.D.)
• Drill Chuck Arbor (DCH-J0K): For Jacob's Taper No. 0
• Grindstone Arbor (AGM-03): For grinding wheel with I.D. of ø5 mm
Optional Equipment:
• Collet Chuck (CHK-[][]): ø0.5 mm~ø6.0 mm in 0.1 mm increments and ø3/32",ø1/8", ø1/4"
• Chuck Nut (K-265): For Collet Chuck (CHK)
• Metal Saw Arbor (KCH-03): For ø0.24" (I.D.) x ø1.18" (O.D.)
• Drill Chuck Arbor (DCH-J0K): For Jacob's Taper No. 0
• Grindstone Arbor (AGM-03): For grinding wheel with I.D. of ø5 mm
The NSK Nakanishi RAX-271E 90° Angle Spindle is assembled with high precision angular ball bearings 2 each on front and rear sides to obtain high accuracy and strong rigidity and is capable of using up to a ø1/4"(ø6.35 mm) collet chuck.
• Maximum allowable motor speed for the spindle: 30,000 rpm
• Maximum rotating speed at the cutting tool:
RAX-271E 20,000 rpm
RAX-71E 5,000 rpm
• Spindle Accuracy: Within 3 μm
• Standard Size Collet Chuck (CHK-3.175): ø1/8"
• Weight: 1 lb. 4.46 oz.
• NSK Catalog Number: ASE1579
(formerly RAX-270E)
Standard Equipment:
• Chuck Nut (K-265) : 1 pc.
• Wrench (12 x 14) : 2 pcs., (22 x 27) : 1 pc. Additional collet purchase required
Optional Equipment:
• Collet Chuck (CHK-[][]): ø0.5 mm~ø6.0 mm in 0.1 mm increments and ø3/32",ø1/8", ø1/4"
• Chuck Nut (K-265): For Collet Chuck (CHK)
• Metal Saw Arbor (KCH-03): For ø0.24" (I.D.) x ø1.18" (O.D.)
• Drill Chuck Arbor (DCH-J0K): For Jacob's Taper No. 0
• Grindstone Arbor (AGM-03): For grinding wheel with I.D. of ø5 mm
• Maximum allowable motor speed for the spindle: 30,000 rpm
• Maximum rotating speed at the cutting tool:
RAX-271E
RAX-71E
• Spindle Accuracy: Within 3 μm
• Standard Size Collet Chuck (CHK-3.175): ø1/8"
• Weight: 1 lb. 4.46 oz.
• NSK Catalog Number: ASE1579
Standard Equipment:
• Chuck Nut (K-265) : 1 pc.
• Wrench (12 x 14) : 2 pcs., (22 x 27) : 1 pc. Additional collet purchase required
Optional Equipment:
• Collet Chuck (CHK-[][]): ø0.5 mm~ø6.0 mm in 0.1 mm increments and ø3/32",ø1/8", ø1/4"
• Chuck Nut (K-265): For Collet Chuck (CHK)
• Metal Saw Arbor (KCH-03): For ø0.24" (I.D.) x ø1.18" (O.D.)
• Drill Chuck Arbor (DCH-J0K): For Jacob's Taper No. 0
• Grindstone Arbor (AGM-03): For grinding wheel with I.D. of ø5 mm
