Suhner LFC-11 Universal Air Profiler
Rated 3.5/5 based on 11 customer reviews

Suhner LFC-11 Universal Air Profiler

Availability: In Stock
Product SKU: 11201401
$2,177.10

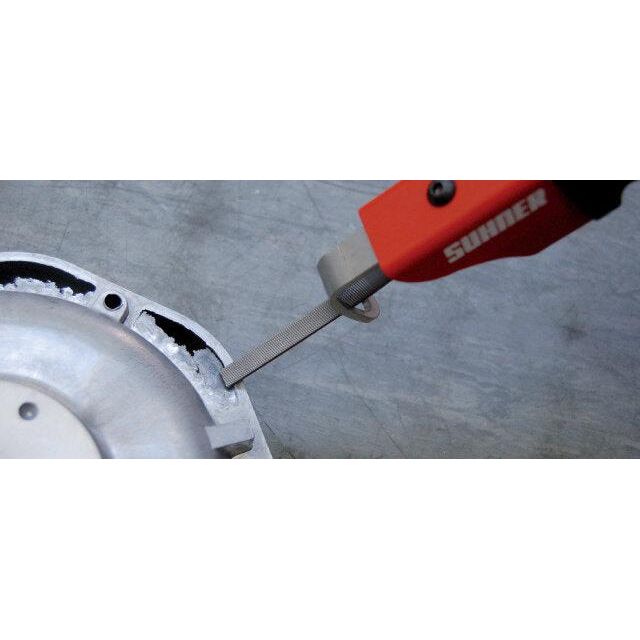

The powerful reciprocating action of this heavy-duty profiler performs many varied operations previously confined to manual labor, such as filing metal and plastic parts, stoning and polishing molds and dies, deburring, and even sawing thin-sheet metals and fiber-reinforced plastics. A reliable piston motor generates the exceptionally strong linear stroke, useful for those jobs where rotary tools are inappropriate.

The Suhner LFC-11 profiler fits comfortably in the palm of your hand and can be easily and precisely controlled over large surfaces. Rear exhaust keeps dust and chips out of operator's way. Rotating the rear ring throttle adjusts stroke length from 3/16" to 3/8". The lever on/off throttle controls profiler operation. Additional speed control is available with an optional, air line foot control. A FRL (Filter Regulator Lubricator) unit is essential for minimizing maintenance and extending tool life. Made in Germany.

  • Speeds: ~12,000 strokes per minute
  • Adjustable Stroke: variable from 3/16" to 3/8"
  • Power: 0.4 Horsepower (300 W)
  • Recommended Air Pressure: 90 psi
  • Air Consumption: 8.8 cfm
  • Air Inlet: 1/4 NPT

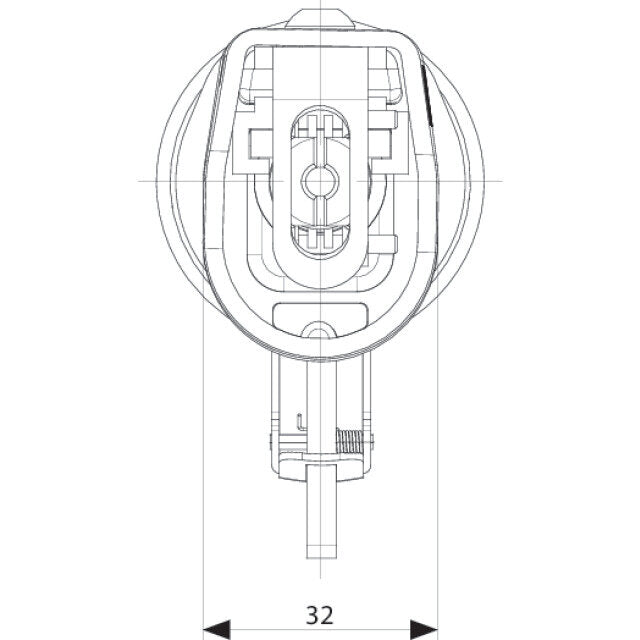

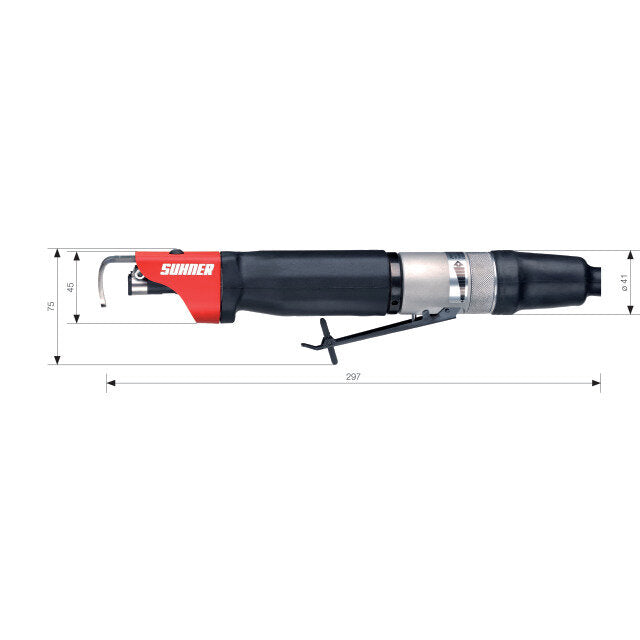

  • Size: ~2.5" High x 1.5" Wide x 9" Long
  • Weight: ~22 ounces

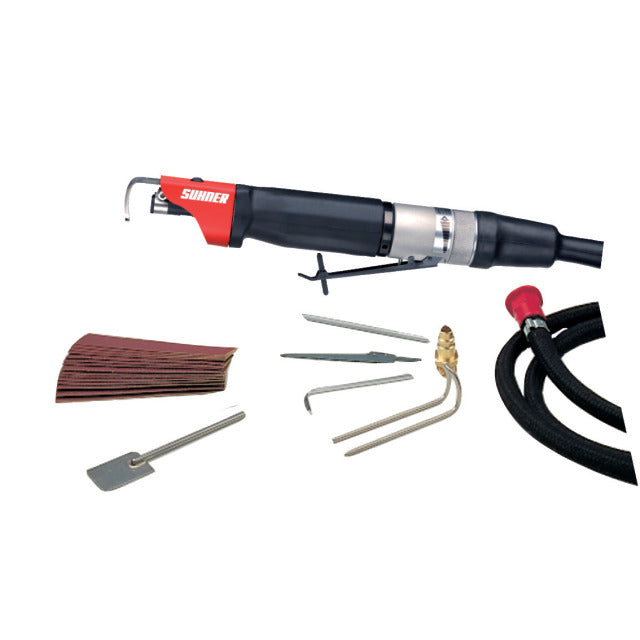

The LFC-11 can be purchased either as a Tool Only which includes the LFC-11, 4mm Tool Holder, and Supply and Exhaust Hose or as a Kit which includes the LFC-11 in a carrying case which contains a Supply and Exhaust Hose, Silencer Unit, 4mm Tool Holder, Half-Round File (Coarse), 4mm Round File (Coarse), 32-Tooth Saw Blade (steel plates), Grinding Shoe, Self-Adhesive Grinding Strips (80, 120, 150, 320 Grit).


Optional Equipment:
