Single Position Tool Holder - Heavy Duty


Single Position Tool Holder - Heavy Duty

Add Your Review
Availability: In Stock
Product SKU: TBS-1350
Prop 65
Warning

This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.

$157.00

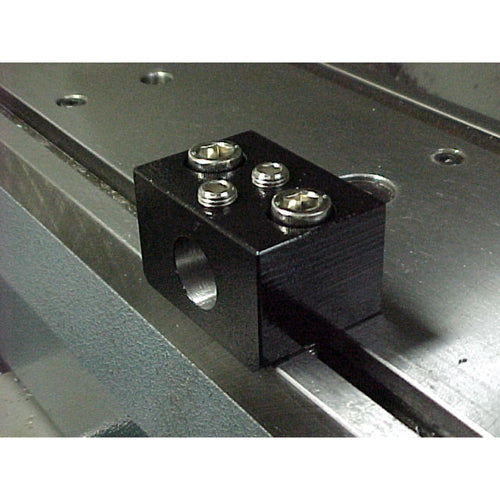

These single position heavy duty holders are designed for heavier cuts. Double hold down bolts provide extra clamping for heavy turning and boring.

Differential spacing of the holes in each holder allow different tool configurations for narrow and wide spaced tools on one block. An end stop mounted to the table provides repeatable location of the tool block for quick changeover of setups.

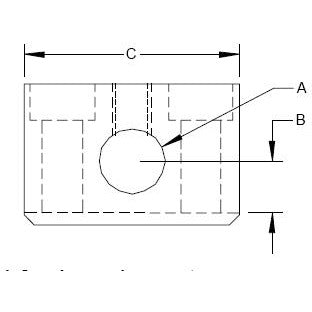

Order # Description A B C
TBS-1350 3/8” center height,
5/8” bore		 .6250 .3750 2.100
TBS-1450 1/2” center height,
5/8” bore		 .6250 .5000 2.100

GTH-1204C

(TBS-1460)

 1/2” center height,
3/4” bore		 .7500 .5000 2.100
TBS-1420 12mm Center, 20mm Bore 20mm .5000 2.100

GTH-1404C

(TBS-1660)

3/4” center height,
3/4” bore

 .7500 .7500 2.100
TBS-1620 19mm Center, 20mm Bore 20mm .7500 2.100


ECI ceased operations in July of 2021. All remaining ECI stock is no longer available once sold. ARTCO has begun producing replacement tool holders as ECI stock is depleted. These new part numbers for the Heavy Duty Single Position Tool Holders now begin with "GTC" rather than the previous "TBS." If you are looking for a particular dimension tool holder please do not hesitate to reach out to us regarding availability.
