NSK Nakanishi AMX-65 Series Air Motor Spindle


NSK Nakanishi AMX-65 Series Air Motor Spindle

Availability: In Stock
Product SKU: AS2636

The AMX-65 Series was discontinued by the manufacturer.

The NSK Nakanishi AMX Series uses a vane type air motor coupled with an integral geared speed reducer/torque multiplier and high precision spindle in a single space saving body. This small body spindle series is capable of delivering high speeds or high torque. It is available in 3 diameters, Ø1.97"(Ø50mm), Ø2.56"(Ø65mm), Ø3.15"(80mm) and 3 motor/reducer configurations, 1/1, 1/3, 1/9 for a total of 24 different types to choose from. There are also different body styles, air configurations and mounting styles, making the application possibilities almost limitless. These spindles are ideal for high-precision milling, drilling, slitting and grinding. Please use air line kit AL-0304 or AL-951 with these motor/spindles.

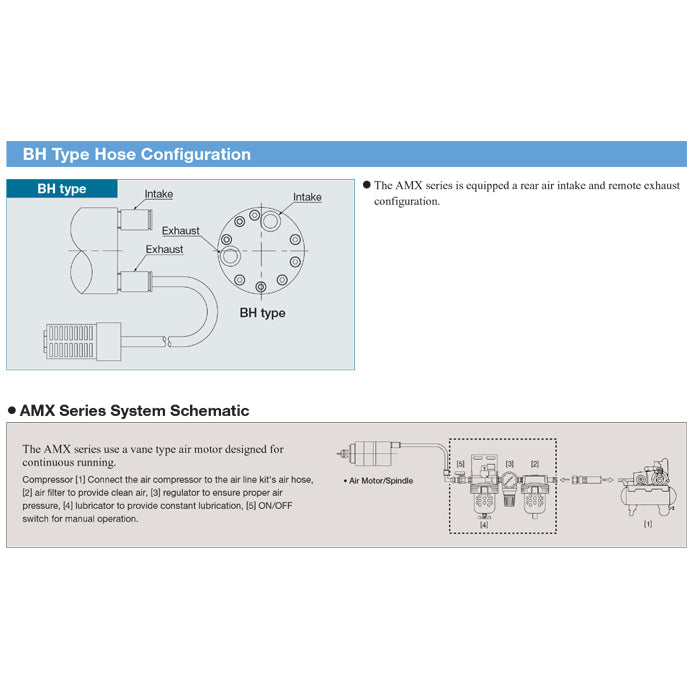

BH Type Hose Configuration. The AMX series is equipped with a rear air intake and remote exhaust configuration. (see drawing)

3 Types of Motor/Spindle bodies to choose from:
AMX-Straight Body Standard Type. The outside body is made from precision ground, Stainless Steel SUS416.
AMXL-Straight Body Light Type. The outside body is made from precision ground Aluminum to make it lightweight and perfect for robotic applications.
AMXF-Flange Mounting Type. The body is made from precision ground Stainless Steel SUS416 and incorporates a flange for easy 2 bolt mounting.

3 Motor/Reducer configurations.
1/1 Ratio: 7,700 min. rpm. (46 cN-m)
1/3 Ratio: 2,800 min. rpm. (170 cN-m)
1/9 Ratio: 920 min. rpm. (410 cN-m)

Specifications AMX-50
• Speed: 920 - 7,700 min. rpm.
• Max. Output Power: 125W
• Outside Diameter: ø2.56" (ø65mm)
• Proper Air Pressure: 42-71PSI
• Spindle Accuracy: within 1µm.
• Hose Diameter: Intake Air ø6.0 mm (O.D.) - 6 ft.,

Included Equipment
• Intake Air Hose: (K-215) Ø6mm x 6ft.
• Exhaust Air Hose: (K-256) Ø8mm x 3.94".
• Chuck Nut (K-256): 1 pc. (for 1/1 Ratio)
• Chuck Nut (CHN-L): 1 pc. (for 1/3 & 1/9 Ratio)
• Filter Joint (FJ-01)
• Wrench (12 x 14): 2 pc. each

Optional Equipment
• Collet CHK (0.5mm - 6.35mm) - (For 1/1 Ratio)
• Collet CHL (1.0mm - 8.0mm) - (For 1/3 & 1/9 Ratio)
