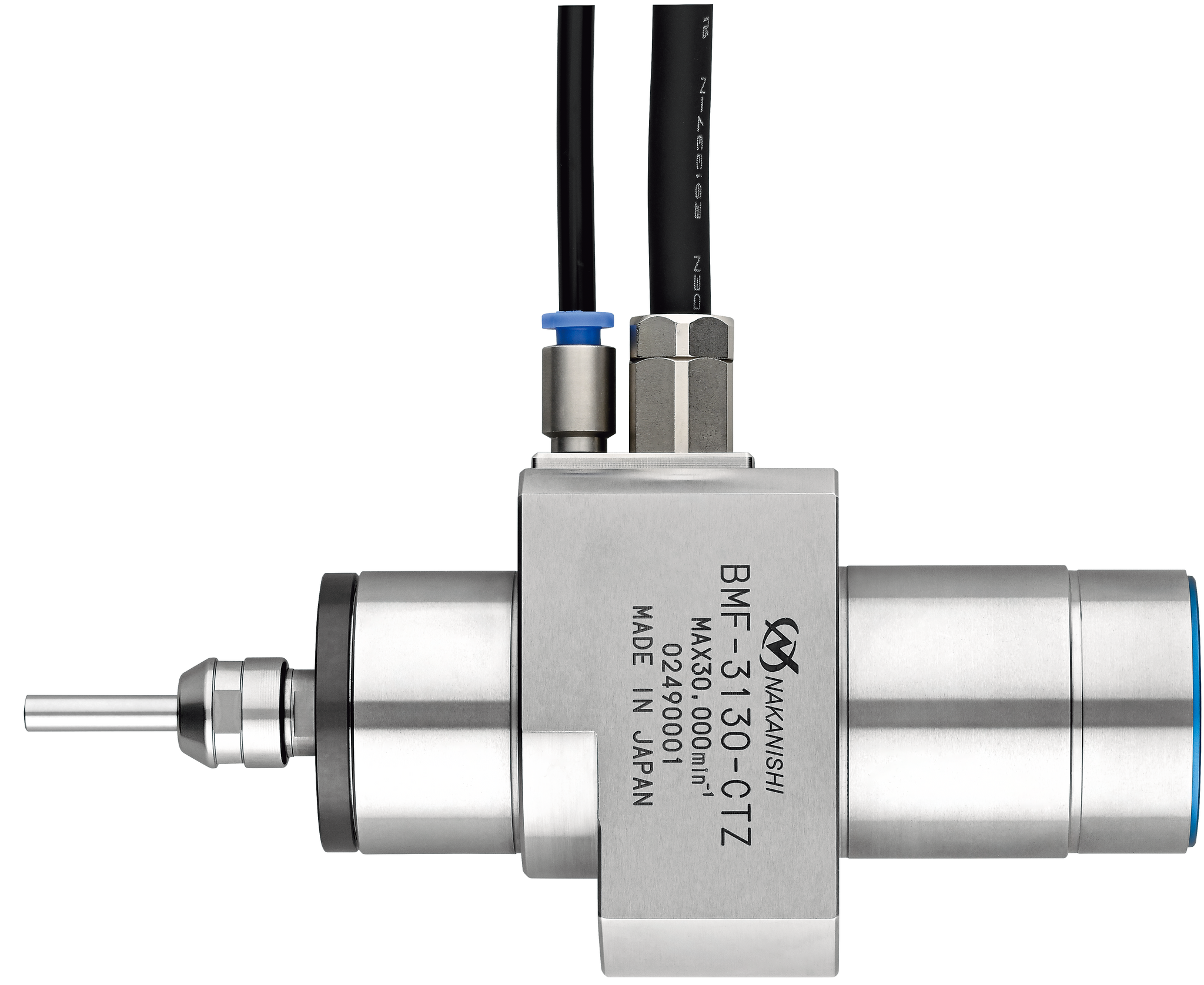

NSK Nakanishi BMF-3130-CTZ Spindle
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.
Experience high-precision, high‐speed machining with the BMF-3130-CTZ - engineered for demanding CNC automatic lathe operations. With a robust flange-type torque motor design and top‐tier accuracy, this spindle gives you the reliability, speed and repeatability you need to keep production lines running smoothly.
Key Features
- Designed for CNC automatic lathes with flange‐type mounting, ideal for high‐throughput manufacturing.
- Maximum speed of 30,000 min⁻¹ - enabling ultra-fast machining cycles.
- Motor power rating: 350 W, empowering significant torque in a compact form.
- Outer diameter φ31 mm - compact spindle size allows for tight integration into space-constrained systems.
- Spindle accuracy: within 1 μm - ensures extremely precise tool positioning and minimal deviation.
- Net weight: 659 g - light enough for ease of handling and mounting, yet robust for continuous duty.
- Minimum bending radius of motor cord: 60 mm - ensures flexible installation and safer routing.
Includes:
- Collet nut (CHN-A)
- Wrenches: sizes 8 × 5 and 9 × 11
- Hex socket bolts: M5 × 35 and M5 × 40 (2 pieces each)
- *Collet is sold separately.
