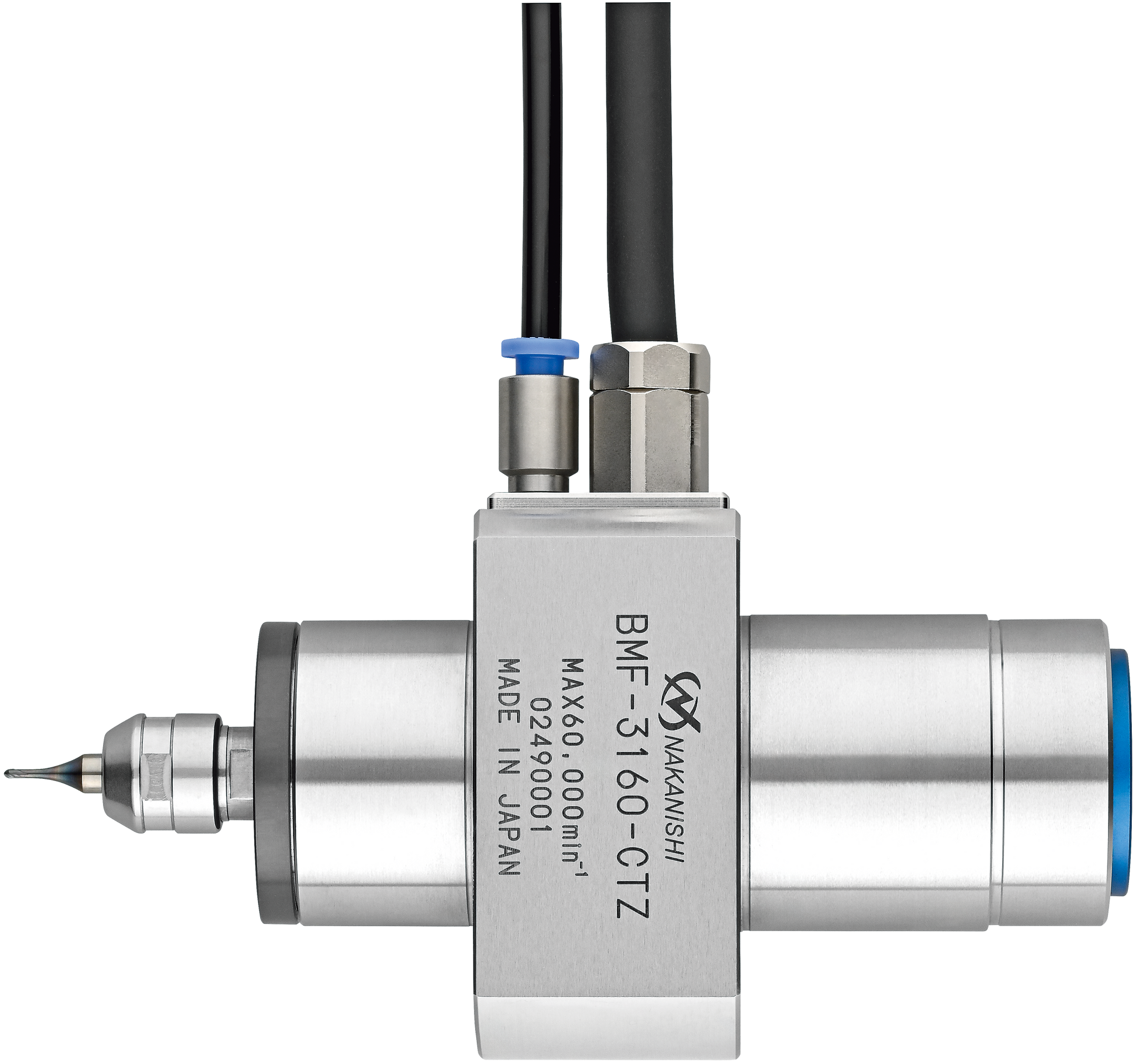

NSK Nakanishi BMF-3160-CTZ Spindle
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.
Bring high-speed precision to your CNC automatic lathe setup with the NSK Nakanishi BMF-3160-CTZ - a flange-type motor spindle optimized for tight spaces and demanding applications. Designed to deliver rapid throughput while maintaining ultra-tight accuracy, this spindle is built for professional manufacturing environments.
Key Features
- Flange-type mounting design for simple integration into CNC automatic lathes and rotary tool setups.
- Maximum speed: 60,000 min⁻¹ - enables ultra-high-speed operations and shorter cycle times.
- Compact Ø 31 mm outer diameter - fits narrow spindle housings and tight machining chambers.
- Maximum rated power: 350 W - delivers consistent performance for high-speed milling or drilling.
- Spindle accuracy: within 1 μm - ensures precise tool positioning and high repeatability.
- Ultra-short body length: approx. 98.4 mm for space-saving installation in compact systems.
- Minimum cord bending radius: 60 mm - simplifies installation in confined spaces.
- Net weight: 604 g - lightweight yet durable for continuous duty.
Includes:
- Collet nut (CHN-A)
- Wrenches: 8 × 5 mm and 9 × 11 mm
- Hex socket bolts: M5 × 35 mm × 2 pcs, M5 × 40 mm × 2 pcs
- *Collet sold separately
Optional Accessories:
- Collet (CHA Group): ø0.5 – 4.0 mm
- Motor cord: 3 m (7931), 5 m (7932), 7 m (7933)
