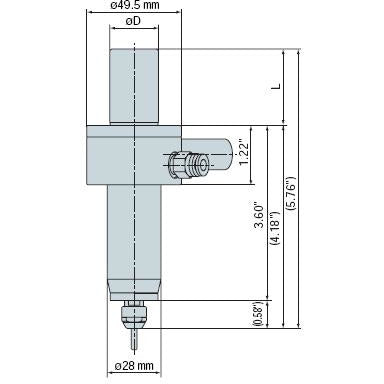

NSK Nakanishi AMS9123 SMS400 Milling Spindle - Straight Shank
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.
The NSK Nakanishi SMS400 Milling Spindle uses an advanced motor system allowing for long continuous operation and no heat generation. A compact, high torque motor makes this system perfect for grinding as well as drilling and milling with tools less than ø1 mm diameter. This NSK Nakanishi spindle can easily be installed in a milling machine and NC lathe using a standard milling chuck. Spindle and shank utilize a one-piece design resulting in an extremely high-precision system.
Specifications
• Speed: 40,000 rpm
• Max. Output Power: 60W
• Proper Air Pressure: 42-71PSI
• Air Consumption: 4.94CFM
• Spindle Accuracy: Within 1 µm
• Hose: Intake Air - ø6.0 mm (O.D.), Exhaust Air - Canister Muffler
• Shank: ø25.4 mm x 1.57" long
• Weight: 28.57 oz.
Included Equipment
• Collet Chuck ø1/8" (CHA-3.175): 1 pc.
• Chuck Nut (K-263)
• Wrench (8 x 5), (10 x 10): 1 pc. each
• Hose (K-215): ø6 mm x 6 ft.
• Filter Joint (FJ-01)
The NSK Nakanishi SMS400 Milling Spindle uses an advanced motor system allowing for long continuous operation and no heat generation. A compact, high torque motor makes this system perfect for grinding as well as drilling and milling with tools less than ø1 mm diameter. This NSK Nakanishi spindle can easily be installed in a milling machine and NC lathe using a standard milling chuck. Spindle and shank utilize a one-piece design resulting in an extremely high-precision system.
Specifications
• Speed: 40,000 rpm
• Max. Output Power: 60W
• Proper Air Pressure: 42-71PSI
• Air Consumption: 4.94CFM
• Spindle Accuracy: Within 1 µm
• Hose: Intake Air - ø6.0 mm (O.D.), Exhaust Air - Canister Muffler
• Shank: ø25.4 mm x 1.57" long
• Weight: 28.57 oz.
Included Equipment
• Collet Chuck ø1/8" (CHA-3.175): 1 pc.
• Chuck Nut (K-263)
• Wrench (8 x 5), (10 x 10): 1 pc. each
• Hose (K-215): ø6 mm x 6 ft.
• Filter Joint (FJ-01)
