Precision Diamond Pin, BX & GX Series
Rated 3.5/5 based on 11 customer reviews

Precision Diamond Pin, BX & GX Series

Availability: In Stock
Product SKU: GX-141C
$0.00

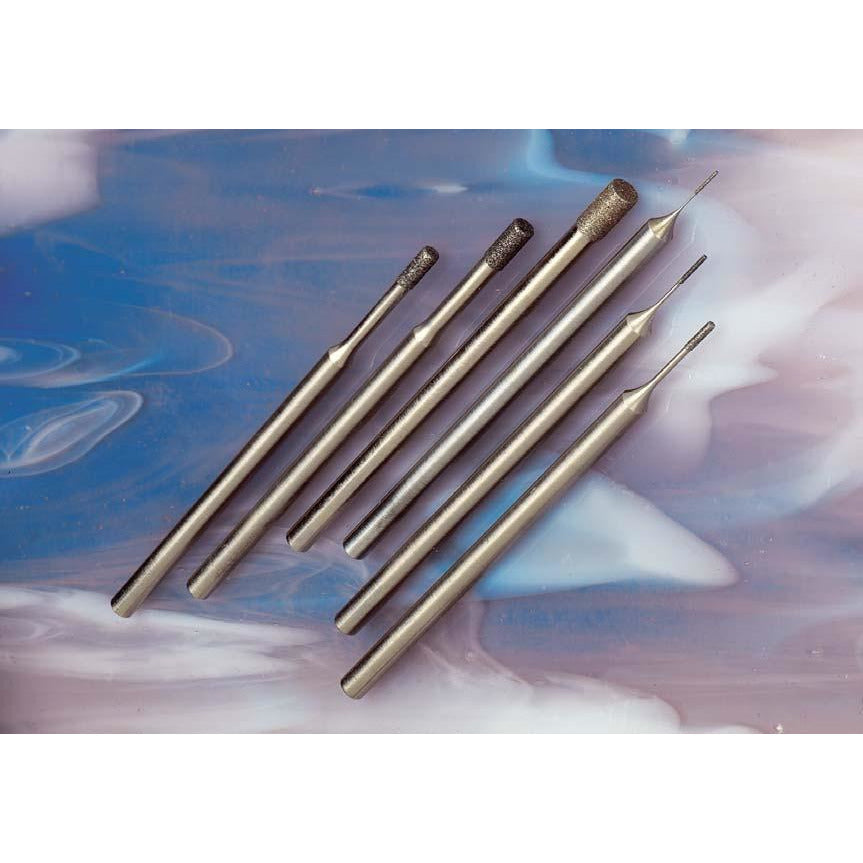

ARTCO™ Diamond and CBN (Cubic Boron Nitride) pins offer a new dimension in precision grinding.

They are today's answer for fast, efficient, and reliable grinding of various, even difficult, materials at low cost. Featuring hardened steel shanks with specially Electrogrip® bonded diamond and CBN particles to ensure maximum particle exposure, assuring a free cutting action that greatly reduces heat and wear. These precision grinding pins are ideal for use on jigs, internal grinding machines, and hand tools, consistently outperforming conventional pins. Fast stock removal is assured even on the hardest materials. Available on 1/4" Ø Shanks in two different grits.

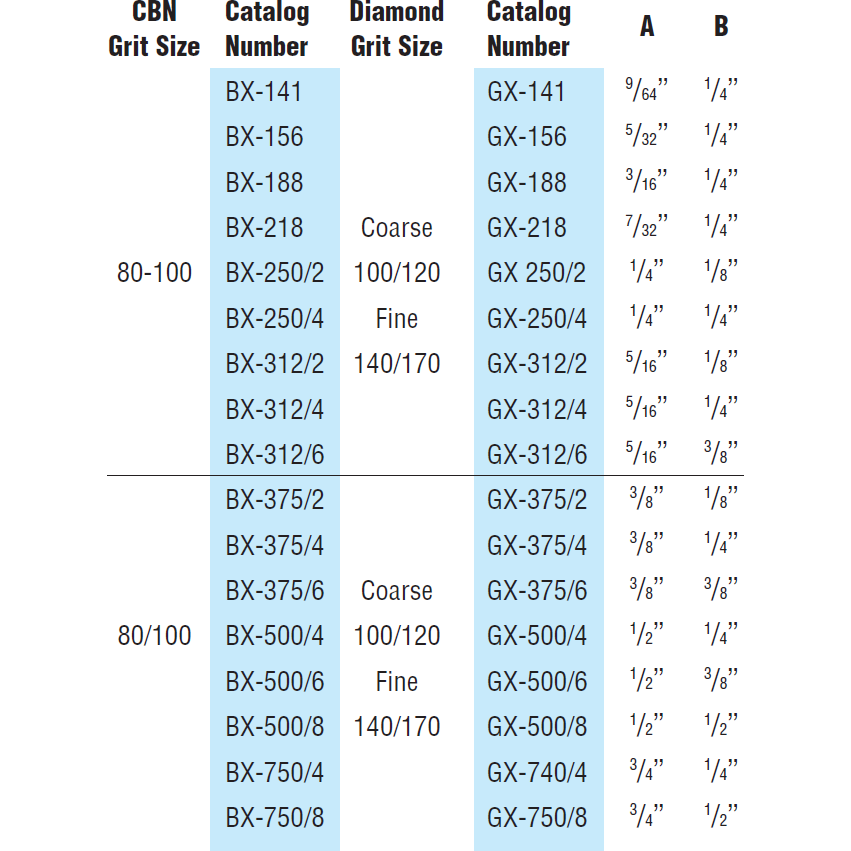

Coarse Diamond Fine Diamond CBN
100/120 140/170 80/100


Recommended Speeds:
.020" – .200" Ø - 60,000 to 120,000 RPM
.200" – .500" Ø - 45,000 to 60,000 RPM
.500" – 1.00" Ø - 30,000 to 45,000 RPM

ARTCO™ Diamond and CBN (Cubic Boron Nitride) pins offer a new dimension in precision grinding.

They are today's answer for fast, efficient, and reliable grinding of various, even difficult, materials at low cost. Featuring hardened steel shanks with specially Electrogrip® bonded diamond and CBN particles to ensure maximum particle exposure, assuring a free cutting action that greatly reduces heat and wear. These precision grinding pins are ideal for use on jigs, internal grinding machines, and hand tools, consistently outperforming conventional pins. Fast stock removal is assured even on the hardest materials. Available on 1/4" Ø Shanks in two different grits.


Coarse Diamond Fine Diamond CBN
100/120 140/170 80/100


Recommended Speeds:
.020" – .200" Ø - 60,000 to 120,000 RPM
.200" – .500" Ø - 45,000 to 60,000 RPM
.500" – 1.00" Ø - 30,000 to 45,000 RPM
